Polycrystalline Photovoltaic Module (250W Module) |
|
Photovoltaic power generation is an eco-friendly energy source without pollution.
We got into partnership with a foreign company that manufactures 250W and 300W polycrystalline photovoltaic modules and do our best to provide a module of which the quality is excellent, and fully automate all manufacturing process, and manufacture only the products of which the quality is uniform, and then provide only perfect products through a strict quality inspection. |
|
|
 |
|
|
A dukan duniya shigarwa ayyuka |
|
|
 |
|
|
|
Characteristics |
|
1) High conversion efficiency through the best technology and automation system (A maximum of 15.3%)
2) An output tolerance of 0~+3% is guaranteed.
3) The product is guaranteed to withstand typhoon (2400kPa) and maximum load (5400 kPa).
4) High output is guaranteed for a long period of time even in low irradiance.
5) All products are tested for EV before.after being manufactured.
6) Warranty on a minimum output of 90% for 10 years, warranty on a rated output of 80% for 25 years
7) ISO9001:2008, ISO14001:2004, IEC61215, IEC61730 certification |
|
|
|

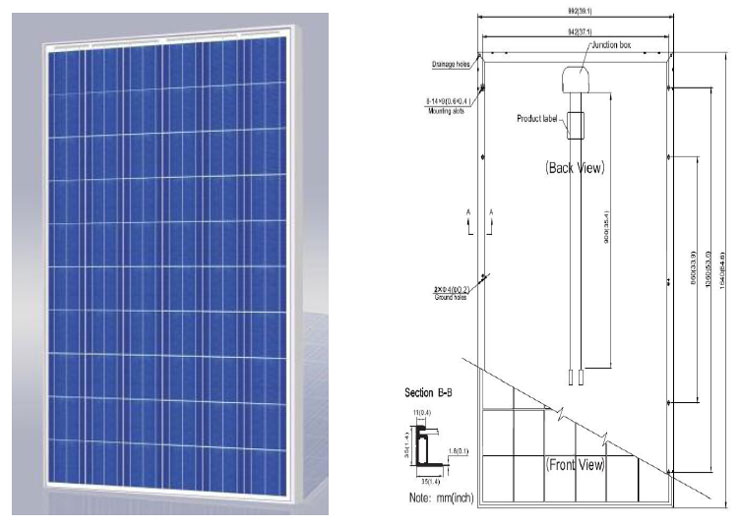

Photovoltaic Module 250W Product Picture and Drawing |
|
|
 |
|
|
|
Ratings |
|
|
| Electrical Properties STC |
Model Name GY250P-60 |
| Maximum Power |
250W |
| Maximum Power Voltage |
30.4V |
| Maximum Power Current |
8.22A |
| Open-Circuit Voltage |
37.69V |
| Short-Circuit Current |
8.96A |
| Module Efficiency |
15.3% |
| Operating Temperature Range |
-40 ~ +85℃ |
| Maximum System Voltage |
1000V DC(TUV) |
| Maximum Series Fuse Rating |
15A |
| Maximum Tolerance |
0~+3% |
|
|
|
|

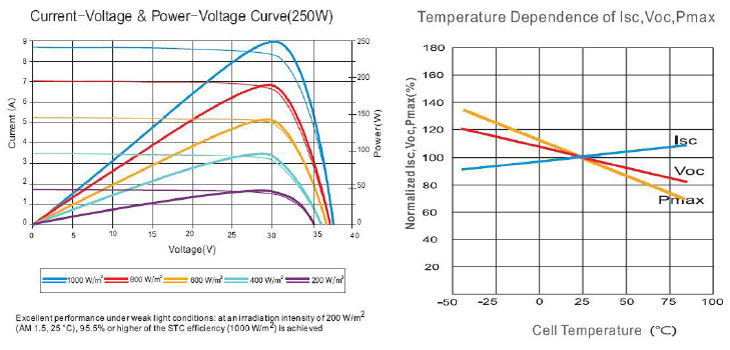

Temperature Characteristics |
|
|
| NOCT (Nominal Operating Cell Temperature) |
47±2℃ |
| Temperature Coefficient of Pmax |
-0.43%/℃ |
| Temperature Coefficient of Voc |
-0.41%/℃ |
| Temperature Coefficient of Isc |
0.08%/℃ |
|
|
|
|
Mechanical Characteristics |
|
|
| Cell Type |
156 x 156mm Polycrystalline Silicon |
| Number of Cells |
60 (6 x 10) |
| Module Dimension |
1640 x 992 x 40mm |
| Weight |
18.5kg |
| Front Glass |
3.2mm 강화유리 3.2mm tempered glass |
| Frame |
Anodized/Electrophoretic aluminum alloy |
| Junction Box |
IP65/IP67 |
| Power Cable |
4.0mm2, Symmetricallengths (-)900mm |
| Connector |
MC4 Connectors |
|
|
|
|
