Polycrystalline Photovoltaic Module (310W Module) |
|
We, Jeongin System, provide high quality and high efficiency solar modules applied high solar cell technology (PID Resistant). We made a strategic partnership with a best Chinese company to offer low prices to our customers maintaining high efficiency power rate. We provide best products only which were certified by Japan JET. |
|
|
![](./image/pr1.gif) |
|
|
A dukan duniya shigarwa ayyuka |
|
|
![](./image/sa.jpg) |
|
|
|
Characteristics |
|
1) Excellent low light performance on cloudy days, mornings and evenings
Advanced surface texturing
Back Surface Filed
Selective Emitter
2) Maximize Limited Space
60-cell module power output up to 265W
Up to 162W/m2 Power Density
3) High Reliable due to stringent quality control
All modules have to pass electroluminescence (EL) inspection
Over 30 in-house tests (UV, TC, HF, and many more)
In-house testing goes well beyond certification requirements
PID resistant
4) Certified to withstand challenging environmental conditions
130km/h wind load (2400Pa)
900kg snow load per module (5400Pa)
35mm hail stones at 97km/h
|
|
|
|

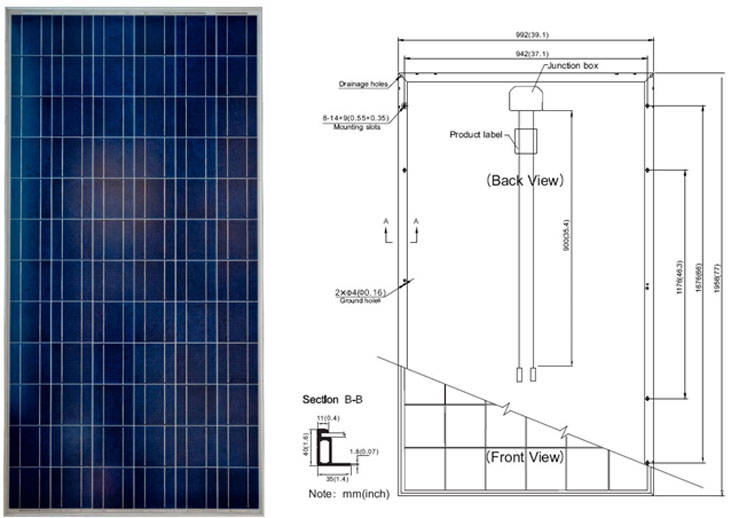

Photovoltaic Module 300W Product Picture and Drawing |
|
|
![](./image/tt4.jpg) |
|
|
|
Ratings |
|
|
STC (Standard Test Condition) |
(Model Name) INE-310-6PA |
Maximum Power at STC (Pmax) |
310W |
Power Output Tolerance |
0 to +5% (Positive Power Tolerance) |
Max Power Voltage (Vmp) |
37.0V |
Max Power Current (Imp) |
8.38A |
Open Circuit Voltage (Voc) |
45.5V |
Short Circuit Current (Isc) |
8.85A |
Module Efficiency |
16.0% |
Operating Module Temperature |
-40¡É ~ +85¡É |
Maximum System Voltage |
1000V DC (IEC) |
Maximum Series Fuse Rating |
15A |
|
|
|
|
Temperature Characteristics |
|
|
NOCT (Nominal Operating Cell Temperature) |
45¡É¡¾2¡ÆK |
Temperature Coefficient of Pmax |
-0.41%/K |
Temperature Coefficient of Voc |
-0.32%K |
Temperature Coefficient of Isc |
0.05%/K |
|
|
|
|
Mechanical Characteristics |
|
|
Cell Type |
Polycrystalline Silicon 156 x 156mm |
No. of Cells |
72 (6 x 12) |
Module Dimension |
1956 x 992 x 40mm |
Weight |
27.6kg |
Front Glass |
4.0mm tempered glass |
Frame |
Silver Anodized aluminum alloy (Black Available) |
Junction Box |
IP67 Rated |
Output Cables |
Photovoltaic Technology Cable 4.0mm2, 900mm |
Connector |
MC4 Compatible |
|
|
|
|

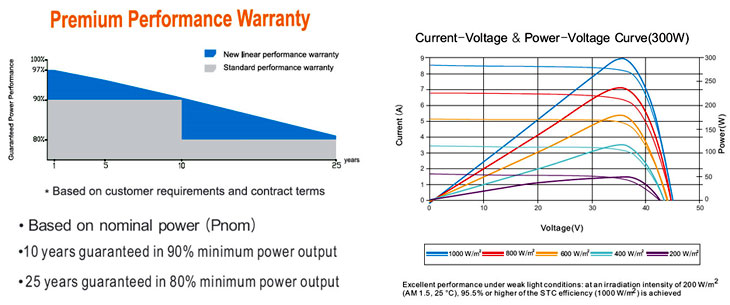

References |
|
|
![](./image/tt4_1.jpg) |
|
|
|
