Polycrystalline Photovoltaic Module (260W Module) |
|
| We, Jeongin System, provide high quality and high efficiency solar modules applied high solar cell technology (PID Resistant). We made a strategic partnership with a best Chinese company to offer low prices to our customers maintaining high efficiency power rate. We provide best products only which were certified by Japan JET. |
|
|
 |
|
|

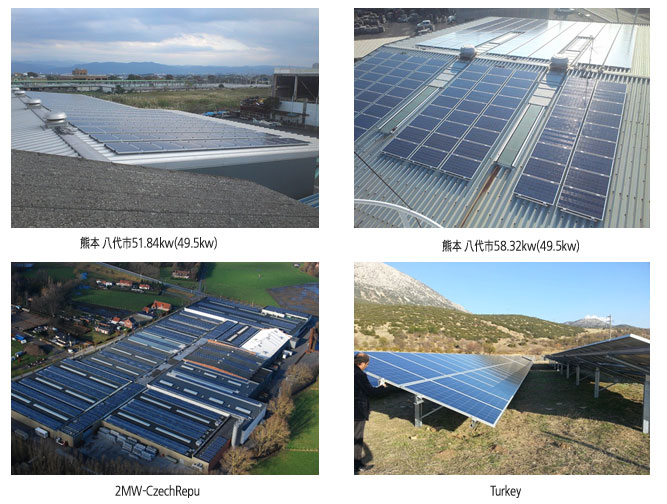

A dukan duniya shigarwa ayyuka |
|
|
 |
|
|
|
Characteristics |
|
1) Excellent low light performance on cloudy days, mornings and evenings
Advanced surface texturing
Back Surface Filed
Selective Emitter
2) Maximize Limited Space
60-cell module power output up to 265W
Up to 162W/m2 Power Density
3) High Reliable due to stringent quality control
All modules have to pass electroluminescence (EL) inspection
Over 30 in-house tests (UV, TC, HF, and many more)
In-house testing goes well beyond certification requirements
PID resistant
4) Certified to withstand challenging environmental conditions
130km/h wind load (2400Pa)
900kg snow load per module (5400Pa)
35mm hail stones at 97km/h
|
|
|
|

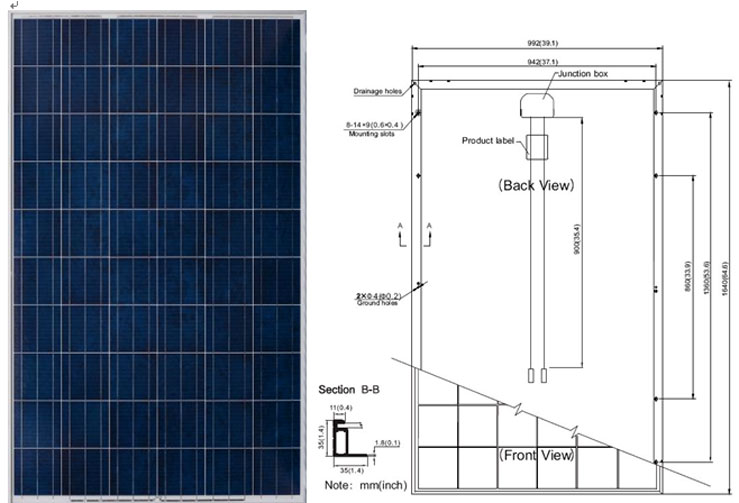

Photovoltaic Module 260W Product Picture and Drawing |
|
|
 |
|
|
|
Ratings |
|
|
| STC (Standard Test Condition) |
(Model Name) INE-260-6PB |
| Maximum Power at STC (Pmax) |
260W |
| Power Output Tolerance |
0 to +5% (Positive Power Tolerance) |
| Max Power Voltage (Vmp) |
30.6V |
| Max Power Current (Imp) |
8.50A |
| Open Circuit Voltage (Voc) |
38.2V |
| Short Circuit Current (Isc) |
9.00A |
| Module Efficiency |
15.9% |
| Operating Module Temperature |
-40℃ ~ +85℃ |
| Maximum System Voltage |
1000V DC (IEC) |
| Maximum Series Fuse Rating |
15A |
|
|
|
|
Temperature Characteristics |
|
|
| NOCT (Nominal Operating Cell Temperature) |
44℃±K |
| Temperature Coefficient of Pmax |
-0.41%/K |
| Temperature Coefficient of Voc |
-0.32%K |
| Temperature Coefficient of Isc |
0.05%/K |
|
|
|
|
Mechanical Characteristics |
|
|
| Cell Type |
Polycrystalline Silicon 156 x 156mm |
| No. of Cells |
60 (6 x 10) |
| Module Dimension |
1640 x 992 x 35mm |
| Weight |
18.2kg |
| Front Glass |
3.2mm tempered glass |
| Frame |
Silver Anodized aluminum alloy |
| Junction Box |
IP67 Rated |
| Output Cables |
Photovoltaic Technology Cable 4.0mm2, 900mm |
| Connector |
MC4 Compatible |
|
|
|
|
